系统级 Runner 接入

复制页面

1106 字约 4 分钟

概述

系统管理员可以在 admin 管理平台 添加机器，作为 云原生构建/云原生开发 功能的 Runner，供用户使用。

CNB 支持 Linux、Mac 和 Windows 构建机。

两种托管模式

具体使用方式见管理端配置和Runner配置

系统托管（默认）

由 CNB 平台调度管理的机器，需要机器和平台可以互相访问，通过 ip:port 的方式添加。

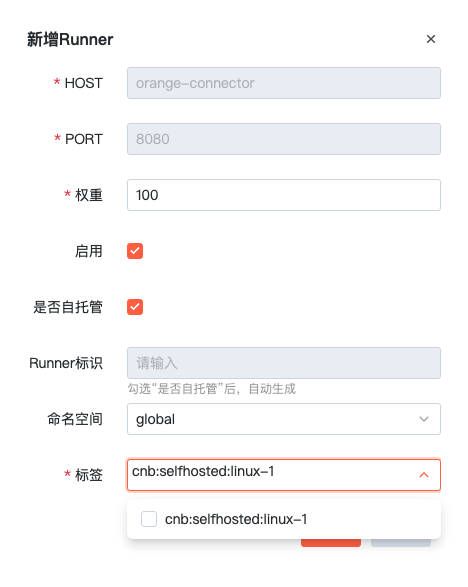

自托管

由用户自行管理的机器，仅要求机器能直接访问CNB平台即可，通过唯一标识的方式添加。

系统环境要求

Linux 构建机

  • TencentOS 3.2 / TencentOS 3.1 / CentOS 8 及衍生版
  • 内核版本推荐 5.4+
  • docker >= 26.1.5
  • 可监听 8087, 8088 端口

MAC 构建机

  • git >= 2.43.0
  • 可监听 8087、8088 端口

由于 Mac 不支持 OverlayFS，读秒克隆会降级为普通克隆。

Windows 构建机

  • 建议 Windows 10 及以上
  • git >= 2.43.0
  • 可监听 8087、8088 端口

由于 Windows 不支持 OverlayFS，读秒克隆会降级为普通克隆。

配置过程

1. 配置 Linux 构建机 （标准方案）

初始化 RUNNER 脚本

a-download.sh

b-sysctl.sh

c-raid0.sh

d-daemon-json.sh

e-install-docker.sh

f-install-docker-plugin.sh

g-install-runner-config.sh

h-install-runner.sh

i-install-binfmt.sh

j-install-clean-cgroup.sh

a-download.sh
#!/bin/bash
# =============================================================================
# Script:     a-download.sh
# Description: 下载 CI Runner 所需的 Docker 组件到 files/ 目录
# Note:       下载内容包括 Docker 二进制包、docker-compose、docker-buildx
#             同时下载 x86_64 和 aarch64 两个架构，文件名以架构结尾
#             GitHub 资源支持代理加速，设置 USE_GITHUB_PROXY=true 启用
# Usage:      USE_GITHUB_PROXY=true ./a-download.sh
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Constants
# -----------------------------------------------------------------------------
TARGET_DOCKER_VERSION="27.5.1"
TARGET_COMPOSE_VERSION="v2.40.3"
TARGET_BUILDX_VERSION="v0.21.0"
DOWNLOAD_DIR="$(cd "$(dirname "$0")/files" && pwd)"
mkdir -p "$DOWNLOAD_DIR"

# GitHub 代理，设置 USE_GITHUB_PROXY=true 启用代理
GITHUB_PROXY_BASE="https://ghfast.top"

# 拼接 GitHub 下载地址，根据 USE_GITHUB_PROXY 决定是否走代理
github_url() {
    local url="$1"
    if [[ "${USE_GITHUB_PROXY}" == "true" ]]; then
        echo "${GITHUB_PROXY_BASE}${url}"
    else
        echo "$url"
    fi
}

# -----------------------------------------------------------------------------
# Download for all architectures
# -----------------------------------------------------------------------------
for HOST_ARCH in x86_64 aarch64; do
    ARCH="${ARCH_MAP[$HOST_ARCH]}"
    echo "========================================"
    echo "Downloading for ${HOST_ARCH} (${ARCH})"
    echo "========================================"

    # Docker binaries
    echo "[1/3] Docker ${TARGET_DOCKER_VERSION}..."
    wget --show-progress -O "${DOWNLOAD_DIR}/docker-${TARGET_DOCKER_VERSION}-${HOST_ARCH}.tgz" \
        "https://mirrors.cloud.tencent.com/docker-ce/linux/static/stable/${HOST_ARCH}/docker-${TARGET_DOCKER_VERSION}.tgz"

    # docker-compose
    echo "[2/3] docker-compose ${TARGET_COMPOSE_VERSION}..."
    wget --show-progress -O "${DOWNLOAD_DIR}/docker-compose-${HOST_ARCH}" \
        "$(github_url "https://github.com/docker/compose/releases/download/${TARGET_COMPOSE_VERSION}/docker-compose-linux-${HOST_ARCH}")"
    chmod +x "${DOWNLOAD_DIR}/docker-compose-${HOST_ARCH}"

    # docker buildx
    echo "[3/3] docker buildx ${TARGET_BUILDX_VERSION}..."
    wget --show-progress -O "${DOWNLOAD_DIR}/docker-buildx-${HOST_ARCH}" \
        "$(github_url "https://github.com/docker/buildx/releases/download/${TARGET_BUILDX_VERSION}/buildx-${TARGET_BUILDX_VERSION}.linux-${HOST_ARCH}")"
    chmod +x "${DOWNLOAD_DIR}/docker-buildx-${HOST_ARCH}"
done

echo "========================================"
echo "All downloads completed:"
ls -lh "${DOWNLOAD_DIR}/docker-${TARGET_DOCKER_VERSION}"-* \
      "${DOWNLOAD_DIR}/docker-compose-"* \
      "${DOWNLOAD_DIR}/docker-buildx-"*
b-sysctl.sh
#!/bin/bash
# =============================================================================
# Script:     a-sysctl.sh
# Description: 安装依赖并配置内核参数（转发、inotify、IPv6 等）
# Note:       自动适配 dnf / yum / apt-get 包管理器
#             配置方式为幂等：已存在的参数会更新值，不存在的会追加
# =============================================================================

set -eo pipefail

# Install dependencies based on package manager
if command -v dnf &>/dev/null; then
    dnf -y install lvm2 libcgroup-tools
elif command -v yum &>/dev/null; then
    yum -y install lvm2 libcgroup-tools
elif command -v apt-get &>/dev/null; then
    apt-get -y install lvm2 cgroup-tools
else
    echo "Unsupported package manager" >&2
    exit 1
fi

# -----------------------------------------------------------------------------
# Configure sysctl parameter: update if exists, append if not
# Usage: configure_sysctl "parameter" "value"
# -----------------------------------------------------------------------------
configure_sysctl() {
    local param="$1"
    local value="$2"
    local conf_file="/etc/sysctl.conf"

    if grep -q "^${param}\s*=" "$conf_file" 2>/dev/null; then
        sed -i "s|^${param}\s*=.*|${param} = ${value}|" "$conf_file"
    else
        echo "${param} = ${value}" >> "$conf_file"
    fi
}

# -----------------------------------------------------------------------------
# Configure kernel parameters
# -----------------------------------------------------------------------------
# Container runtime optimizations
configure_sysctl "net.ipv4.ip_forward" "1"
configure_sysctl "fs.inotify.max_user_instances" "10000"
configure_sysctl "fs.inotify.max_user_watches" "819200"
configure_sysctl "net.core.netdev_max_backlog" "65536"

# Disable IPv6
configure_sysctl "net.ipv6.conf.all.disable_ipv6" "1"
configure_sysctl "net.ipv6.conf.default.disable_ipv6" "1"
configure_sysctl "net.ipv6.conf.lo.disable_ipv6" "1"

# Apply configuration
sysctl -p
c-raid0.sh
#!/bin/bash
# =============================================================================
# Script:     b-raid0.sh
# Description: 检测数据盘并配置挂载：单盘直接格式化挂载，多盘创建 RAID0
# Note:       系统盘通过 df / 自动识别并排除
#             数据盘统一挂载到 /data，使用 XFS 文件系统（ftype=1）
#             多盘时自动处理已有的 /dev/md0 或 /dev/md127
#             需要提前安装 mdadm 工具
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Constants
# -----------------------------------------------------------------------------
MOUNT_POINT="/data"
RAID_DEVICE="/dev/md0"
FS_TYPE="xfs"
MOUNT_OPTS="defaults,pquota"

# 检测系统盘并排除，获取数据盘列表
SYSTEM_DISK=$(df / --output=source | tail -n1)
DATA_DISKS=$(lsblk -d -o NAME,TYPE | awk '/disk/ {print "/dev/"$1}' | grep -v "$SYSTEM_DISK" | grep -v "/dev/md")
DATA_DISK_COUNT=$(echo "$DATA_DISKS" | grep -c . || true)

# -----------------------------------------------------------------------------
# format_and_mount: 格式化设备并挂载到 /data，同时更新 fstab
#   $1 - 设备路径，如 /dev/sdb 或 /dev/md0
# -----------------------------------------------------------------------------
format_and_mount() {
    local device="$1"

    if ! mountpoint -q "$MOUNT_POINT"; then
        echo "mount $device to $MOUNT_POINT"
        mkfs.xfs -f -n ftype=1 "$device"
        mkdir -p "$MOUNT_POINT"
        mount -o "$MOUNT_OPTS" "$device" "$MOUNT_POINT"
    else
        echo "$MOUNT_POINT is already mounted"
    fi

    # 更新 fstab：移除该设备旧的 UUID 记录，追加新记录
    local uuid
    uuid=$(blkid -s UUID -o value "$device")
    grep -v "$uuid" /etc/fstab > /etc/fstab.tmp || true
    echo "UUID=$uuid  $MOUNT_POINT  $FS_TYPE  $MOUNT_OPTS  0  0" >> /etc/fstab.tmp
    mv /etc/fstab.tmp /etc/fstab
}

# -----------------------------------------------------------------------------
# 单盘模式：直接格式化数据盘并挂载
# -----------------------------------------------------------------------------
if [[ "$DATA_DISK_COUNT" -eq 1 ]]; then
    echo "数据盘数量等于 1"
    format_and_mount "$DATA_DISKS"
    df -Th

# -----------------------------------------------------------------------------
# RAID0 (multiple disks)
# -----------------------------------------------------------------------------
elif [[ "$DATA_DISK_COUNT" -gt 1 ]]; then
    echo "数据盘数量大于 1"

    if fdisk -l 2>/dev/null | grep -q '/dev/md0'; then
        echo "/dev/md0 已存在"

    elif fdisk -l 2>/dev/null | grep -q '/dev/md127'; then
        echo "发现 /dev/md127，迁移为 /dev/md0"
        mdadm --stop /dev/md127
        mdadm --assemble "$RAID_DEVICE" --name=0 --update=name $DATA_DISKS
        mdadm --detail --scan > /etc/mdadm.conf
    else
        echo "/dev/md0 不存在，进行初始化"
        yes | mdadm -C -a yes "$RAID_DEVICE" -l 0 -n "$DATA_DISK_COUNT" $DATA_DISKS
        mdadm -D "$RAID_DEVICE"
        mkfs.xfs -f -n ftype=1 "$RAID_DEVICE"
        mdadm --detail --scan > /etc/mdadm.conf
    fi

    mkdir -p "$MOUNT_POINT"
    format_and_mount "$RAID_DEVICE"
    cat /etc/fstab
    df -Th

# -----------------------------------------------------------------------------
# No data disks
# -----------------------------------------------------------------------------
else
    echo "数据盘小于1，不进行任何磁盘操作"
fi
d-daemon-json.sh
#!/bin/bash
# =============================================================================
# Script:     c-daemon-json.sh
# Description: 配置 Docker daemon.json（数据目录、镜像加速、buildkit 等）
# Note:       Docker 数据目录设置为 /data/docker，需要先完成磁盘挂载
#             镜像加速使用腾讯云内网地址，仅适用于腾讯云 CVM
# =============================================================================

set -eo pipefail
mkdir -p /etc/docker


cat>/etc/docker/daemon.json<<EOF
{
  "default-address-pools": [
    {
      "base": "172.17.0.0/12",
      "size": 24
    }
  ],
  "data-root": "/data/docker",
  "registry-mirrors": ["https://mirror.ccs.tencentyun.com"],
  "features": {
    "buildkit": true
  }
}
EOF



#cat> /etc/docker/daemon.json <<EOF
#{
#  "debug": true,
#  "data-root": "/data/docker",
#  "registry-mirrors": ["https://mirror.ccs.tencentyun.com"],
#  "features": {
#    "buildkit": true
#  },
#  "metrics-addr": "$(ip route get 1 | awk '{print $7; exit}'):9323",
#  "icc": false,
#  "bip": "172.17.0.1/16"
#}
#EOF


cat /etc/docker/daemon.json
e-install-docker.sh
#!/bin/bash
# =============================================================================
# Script:     d-install-docker.sh
# Description: 安装 Docker 二进制文件并配置 systemd 服务（docker、containerd）
# Note:       需要 Docker tgz 包已通过 a-download.sh 下载到 files/ 目录
#             Docker 数据目录为 /data/docker，需要先完成磁盘挂载
#             安装完成后会自动启用并启动 docker、docker.socket、containerd
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Constants
# -----------------------------------------------------------------------------
SCRIPT_DIR="$(cd "$(dirname "$0")" && pwd)"
FILES_DIR="$SCRIPT_DIR/files"
TARGET_DOCKER_VERSION="27.5.1"
SERVICE_DIR="/usr/lib/systemd/system"

ARCH="$(arch)"

# -----------------------------------------------------------------------------
# Stop existing Docker services
# -----------------------------------------------------------------------------
systemctl stop docker docker.socket containerd 2>/dev/null || true

# -----------------------------------------------------------------------------
# Install Docker binaries
# -----------------------------------------------------------------------------
tar -xvf "${FILES_DIR}/docker-${TARGET_DOCKER_VERSION}-${ARCH}.tgz" -C /root/
cp /root/docker/* /usr/bin/

# -----------------------------------------------------------------------------
# Write docker.service
# -----------------------------------------------------------------------------
cat > "${SERVICE_DIR}/docker.service" << 'EOF'
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target docker.socket firewalld.service containerd.service time-set.target
Wants=network-online.target containerd.service
Requires=docker.socket

[Service]
Type=notify
EnvironmentFile=-/etc/sysconfig/docker
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock $OPTIONS
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutStartSec=0
RestartSec=2
Restart=always

# Note that StartLimit* options were moved from "Service" to "Unit" in systemd 229.
# Both the old, and new location are accepted by systemd 229 and up, so using the old location
# to make them work for either version of systemd.
StartLimitBurst=3

# Note that StartLimitInterval was renamed to StartLimitIntervalSec in systemd 230.
# Both the old, and new name are accepted by systemd 230 and up, so using the old name to make
# this option work for either version of systemd.
StartLimitInterval=60s

# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

# Comment TasksMax if your systemd version does not support it.
# Only systemd 226 and above support this option.
TasksMax=infinity

# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes

# kill only the docker process, not all processes in the cgroup
KillMode=process
OOMScoreAdjust=-500

[Install]
WantedBy=multi-user.target
EOF

# -----------------------------------------------------------------------------
# Write docker.socket
# -----------------------------------------------------------------------------
cat > "${SERVICE_DIR}/docker.socket" << 'EOF'
[Unit]
Description=Docker Socket for the API

[Socket]
ListenStream=/run/docker.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target
EOF

# -----------------------------------------------------------------------------
# Write containerd.service
# -----------------------------------------------------------------------------
cat > "${SERVICE_DIR}/containerd.service" << 'EOF'
[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target local-fs.target dbus.service

[Service]
ExecStartPre=-/sbin/modprobe overlay
ExecStart=/usr/bin/containerd
Type=notify
Delegate=yes
KillMode=process
Restart=always
RestartSec=5
LimitNPROC=infinity
LimitCORE=infinity
LimitNOFILE=infinity
TasksMax=infinity
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target
EOF

# -----------------------------------------------------------------------------
# Enable and start services
# -----------------------------------------------------------------------------
systemctl daemon-reload
systemctl enable docker docker.socket containerd
systemctl start docker docker.socket containerd


echo "Docker installed ($(arch)):"
echo "docker ps:"
docker ps
f-install-docker-plugin.sh
#!/bin/bash
# =============================================================================
# Script:     d-install-docker-plugin.sh
# Description: 从 files/ 目录安装 docker-compose 和 docker-buildx 到 Docker CLI 插件目录
# Note:       需要先执行 a-download.sh 下载插件文件
#             插件安装路径: /usr/libexec/docker/cli-plugins/
#             自动根据当前架构选择对应的二进制文件
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Constants
# -----------------------------------------------------------------------------
PLUGIN_SRC_DIR="$(cd "$(dirname "$0")/files" && pwd)"
PLUGIN_DST_DIR="/usr/libexec/docker/cli-plugins"



# -----------------------------------------------------------------------------
# Install Docker CLI plugins
# -----------------------------------------------------------------------------
mkdir -p "$PLUGIN_DST_DIR"

cp "${PLUGIN_SRC_DIR}/docker-compose-$(arch)"  "$PLUGIN_DST_DIR/docker-compose"
cp "${PLUGIN_SRC_DIR}/docker-buildx-$(arch)"   "$PLUGIN_DST_DIR/docker-buildx"

echo "Docker CLI plugins installed ($(arch)):"
echo "$PLUGIN_DST_DIR:"
ls -lh "$PLUGIN_DST_DIR"
g-install-runner-config.sh
#!/bin/bash
# 证书文件列表
CERTS=("orange-ca.pem" "orange-runner.crt" "orange-runner.key")
SCRIPT_DIR="$(cd "$(dirname "$0")" && pwd)"
CERTS_DIR="${SCRIPT_DIR}/files"

# 检查并复制证书文件
for cert in "${CERTS[@]}"; do
    if [[ ! -f "${CERTS_DIR}/${cert}" ]]; then
        echo "错误: 证书文件不存在 ${CERTS_DIR}/${cert}"
        exit 1
    fi
    cp "${CERTS_DIR}/${cert}" /etc/orange-ci/
done

mkdir -p /etc/orange-ci
cat>/etc/orange-ci/runner-config.json<<EOF
{
    "cpus": 64,
    "defaultCpus": 8,
    "memory": 128,
    "useCgroupParent": true,
    "quotaSize": {
        "volume": "512G",
        "container": "256G",
        "workspace": "512G"
    },
    "xfsPath": "/data/orange-ci",
    "maxWorkspacePerGit": 30,
    "volumes": [
        "/var/lib/lxcfs/proc/cpuinfo:/proc/cpuinfo",
        "/var/lib/lxcfs/proc/diskstats:/proc/diskstats",
        "/var/lib/lxcfs/proc/loadavg:/proc/loadavg",
        "/var/lib/lxcfs/proc/meminfo:/proc/meminfo",
        "/var/lib/lxcfs/proc/slabinfo:/proc/slabinfo",
        "/var/lib/lxcfs/proc/stat:/proc/stat",
        "/var/lib/lxcfs/proc/swaps:/proc/swaps",
        "/var/lib/lxcfs/proc/uptime:/proc/uptime",
        "/var/lib/lxcfs/sys/devices/system/cpu:/sys/devices/system/cpu"
    ],
    "dockerArgsForDind": [
        "-v /var/lib/lxcfs:/var/lib/lxcfs"
    ],
    "networkIsolation": true
}
EOF


echo "/etc/orange-ci:"
ls -lh /etc/orange-ci
h-install-runner.sh
#!/bin/bash
# =============================================================================
# Script:     e-install-runner.sh
# Description: 使用 docker-compose 部署 Orange CI Runner 和 lxcfs 容器
# Note:       需要 Docker 和 docker-compose 插件已安装
#             compose 文件生成到 /opt/orange/docker-compose.yml
#             可通过环境变量 RUNNER_VERSION 指定 Runner 版本（默认 latest）
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Constants
# -----------------------------------------------------------------------------
SCRIPT_DIR="$(cd "$(dirname "$0")" && pwd)"
COMPOSE_FILE="/opt/orange/docker-compose.yml"
COMPOSE_DIR="$(dirname "$COMPOSE_FILE")"

RUNNER_VERSION="${RUNNER_VERSION:-latest}"

# -----------------------------------------------------------------------------
# Write docker-compose.yml
# -----------------------------------------------------------------------------
mkdir -p "$COMPOSE_DIR"
cat > "$COMPOSE_FILE" << EOF
services:
  orange-runner:
    image: cnbcool/orange-runner:${RUNNER_VERSION}
    restart: always
    network_mode: host
    privileged: true
    container_name: orange-runner
    volumes:
      - /dev:/dev
      - /data/orange-ci:/data/orange-ci:rshared
      - /etc/orange-ci:/etc/orange-ci
      - /etc/docker:/etc/docker:ro
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/bin/docker:/usr/bin/docker
      - /usr/libexec/docker/cli-plugins:/usr/libexec/docker/cli-plugins
      - /var/log/orange-runner:/data/orange-runner/
      - /sys/fs/cgroup:/sys/fs/cgroup
    cgroup: host
    pid: host

  orange-lxcfs:
    image: orangeci/lxcfs:latest
    pull_policy: always
    restart: always
    container_name: orange-lxcfs
    network_mode: none
    privileged: true
    cgroup: host
    pid: host
    volumes:
      - /var/lib/lxcfs:/var/lib/lxcfs:rshared
EOF

# -----------------------------------------------------------------------------
# Pull images and start services
# -----------------------------------------------------------------------------
docker compose -f "$COMPOSE_FILE" pull
docker compose -f "$COMPOSE_FILE" up -d
i-install-binfmt.sh
#!/bin/bash
# =============================================================================
# Script:     f-install-binfmt.sh
# Description: 安装 binfmt systemd 服务，实现多架构容器构建支持
# Note:       依赖 Docker 服务已启动，会在服务启动时自动注册 binfmt
#             包含交叉验证：安装全部架构后反向验证异架构是否正常
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Write binfmt.service
# -----------------------------------------------------------------------------
cat > /usr/lib/systemd/system/binfmt.service << 'EOF'
[Unit]
Description=binfmt
Requires=proc-sys-fs-binfmt_misc.mount docker.service
After=proc-sys-fs-binfmt_misc.mount docker.service

[Service]
Type=oneshot
Restart=on-failure
RestartSec=10s
# 主服务
ExecStart=/bin/bash -c 'docker run --privileged --rm tonistiigi/binfmt --install all && docker run --rm --platform $(arch | sed -e 's/x86_64/arm64/' -e 's/aarch64/amd64/') alpine arch'
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable binfmt.service
systemctl start binfmt.service
journalctl --no-pager -n35  -u binfmt
j-install-clean-cgroup.sh
#!/bin/bash
# =============================================================================
# Script:     g-install-clean-cgroup.sh
# Description: 安装 cgroup 清理定时任务，定期清理残留 cgroup、orphan 挂载和 ifb 网卡
# Note:       每 10 分钟自动清理一次（通过 systemd timer 实现）
#             同时清理 containerd 中已被 Docker 回收但仍残留的容器
#             同时支持 cgroup v1 和 cgroup v2
# =============================================================================

set -eo pipefail

# -----------------------------------------------------------------------------
# Write clean-cgroup.sh
# -----------------------------------------------------------------------------
cat > /usr/bin/clean-cgroup.sh << 'CLEANCGROUP_SCRIPT'
#!/bin/bash
if grep -q cgroup2 /proc/mounts ; then
  # clean expired cgroup
  # links 2 说明只有两个链接  一个是. 一个是父目录中的自身 即没有子目录的..
  find /sys/fs/cgroup/ -maxdepth 1 -type d -links 2 -mmin +10 -name 'cnb.*.slice' -delete

  # clean orphan slice
  for slice in $(systemctl list-units 'cnb*' |grep slice |awk '{print $1}'); do
    if [ ! -d "/sys/fs/cgroup/$slice" ]; then
      systemctl stop "$slice"
    fi
  done

  # clean orphan mount
  mounts=$(mount | grep cnb- | awk '{print $3}')
  for mount in $mounts; do
    slice=$(echo "$mount" | grep -oE 'cnb-\w+-\w+-\w+' | sed 's/-/./g').slice
    if [ ! -d "/sys/fs/cgroup/$slice" ] && [ -d "$mount" ]; then
      umount "$mount"
    fi
  done
else
  find /sys/fs/cgroup/ -maxdepth 2 -type d -links 2 -mmin +10 -name 'cnb*' -delete

  # clean orphan mount
  mounts=$(mount | grep cnb- | awk '{print $3}')
  for mount in $mounts; do
    pipeline_id=$(echo "$mount" | grep -oE 'cnb-\w+-\w+-\w+')
    if [ ! -d "/sys/fs/cgroup/memory/$pipeline_id" ] && [ -d "$mount" ]; then
      umount "$mount"
    fi
  done
fi

# clean ifb
veths=$(ls /sys/class/net | grep '\-ifb' | sed 's/-ifb//')
for veth in $veths; do
  # 如果源网卡不存在 ifb则删除
  if [ ! -e "/sys/class/net/$veth" ]; then
    ip link delete "${veth}-ifb"
  fi
done

ctr_containers=$(ctr -n moby c ls -q)
for container in $ctr_containers; do
  if ! docker container inspect "$container" &> /dev/null; then
    ctr -n moby c rm "$container"
  fi
done
CLEANCGROUP_SCRIPT
chmod +x /usr/bin/clean-cgroup.sh

# -----------------------------------------------------------------------------
# Write clean-cgroup.service
# -----------------------------------------------------------------------------
cat > /usr/lib/systemd/system/clean-cgroup.service << 'EOF'
[Unit]
Description=clean cgroup and mount for cnb

[Service]
ExecStart=/usr/bin/clean-cgroup.sh
EOF

# -----------------------------------------------------------------------------
# Write clean-cgroup.timer
# -----------------------------------------------------------------------------
cat > /usr/lib/systemd/system/clean-cgroup.timer << 'EOF'
[Unit]
Description=clean cgroup for cnb every 10min

[Timer]
OnUnitInactiveSec=10m
OnBootSec=10m
OnActiveSec=0

[Install]
WantedBy=multi-user.target
EOF

# -----------------------------------------------------------------------------
# Enable timer
# -----------------------------------------------------------------------------
systemctl daemon-reload
systemctl enable --now clean-cgroup.timer

2. 配置自托管构建机

2.1 管理后台创建自托管 RUNNER

注

配置的标签以 cnb 开头。

创建自托管 RUNNER
创建自托管 RUNNER
#### ==2.2=={.info} 下载证书放置指定目录 > [!IMPORTANT] > 生产环境请务必执行下列操作，否者会有非法的入侵请求，有严重的安全风险。

① 在管理后台下载证书。

② 将证书压缩包上传到构建机配置目录，并解压。

  • Linux: /etc/orange-ci
  • Mac: $HOME/orange-ci/etc/orange-ci
  • Windows: C:/etc/orange-ci

③ 安装脚本会根据指定目录否有 orange-ci.pem orange-runer.crt orange-runner.key，来决定是否开启 TLS 校验。

2.2 接入自托管 RUNNER

注

① CONNECTOR_ENDPOINT: 请务必确认当前环境是否开启了 HTTPS 和当前环境域名，wss://connector.yourdomain，并替换接入脚本的该变量。

② SELF_HOSTED_ID: 管理后台配置完成步骤 2 后，可以获得该 RUNNER 的唯一标识。

③ 在 .\orange-runner.exe start 或 orange-runner start 前，可以使用 .\orange-runner.exe 或 ./orange-runner 启动服务可以直观的看到报错日志。

④ Windows 下文件找不到，关闭隐藏文件的后缀，确认是否符合预期。

⑤ Windows 创建文件可能有 Bom 头的问题，请注意检查。

Linux
  1. 一键接入脚本
curl -fsSL https://docs.cnb.share.ralphlauren.cn/system-runner/scripts/linux.sh | CONNECTOR_ENDPOINT=wss://connector.cnb.share.ralphlauren.cn  SELF_HOSTED_ID=xxxx-xxxx-xxxx bash
  1. 配置和存储目录
① 配置证书目录: `/etc/orange-ci`
② RUNNER 配置文件: `/etc/orange-ci/runner-config.json`
③ 数据存储目录: `/data/orange-ci`
  1. 其他常用命令
# 安装服务
orange-runner install
# 启动服务
orange-runner start
# 停止服务
orange-runner stop
# 卸载 service
orange-runner uninstall
# 删除全局命令
rm /usr/local/bin/orange-runner
# 查询 service 运行状态
orange-runner status
# 查看日志
tail -f /data/orange-runner/logs/app.log

常见问题

  1. docker buildx 多平台构建时，构建 arm 平台镜像出现以下报错：Error while loading /usr/sbin/dpkg-split: No such file or directory

解决办法：

docker run --rm --privileged multiarch/qemu-user-static --reset -p yes --credential yes
  1. 宿主机 git clone 正常。流水线容器内 clone 代码，访问端口超时

原因：需要开启 ipv4 转发，cat /proc/sys/net/ipv4/ip_forward 需要是 1 。如果没有开启，执行下面命令编辑：

© 2026 cnb.cool
