Overview

Cloud Native Build supports users to subscribe to system events and send messages to the configured callback URL.

Workflow

Notification Configuration

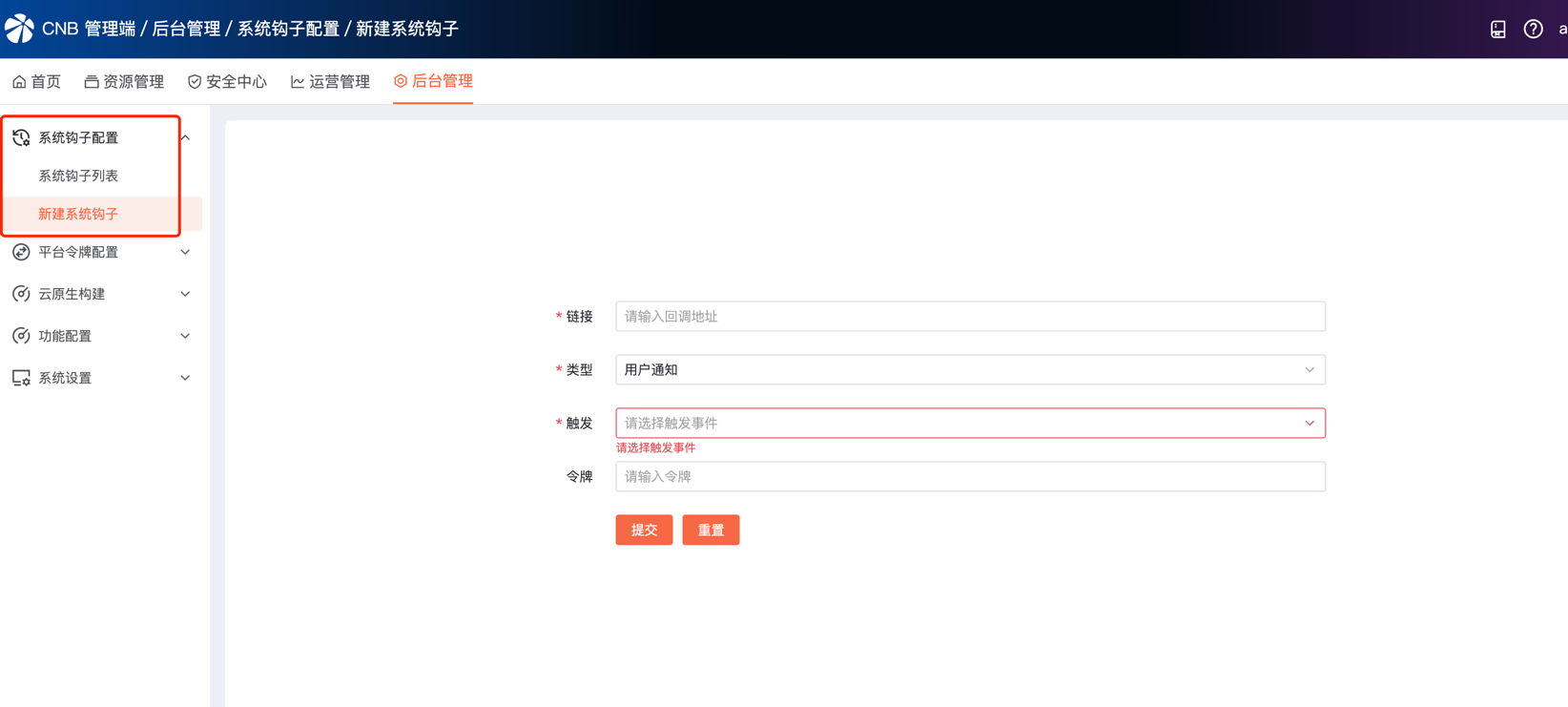

After logging into the admin management platform, click Admin Console -> System Hook Configuration -> Create System Hook to enter the configuration page.

The configuration parameters required for user notification are as follows:

Parameter Name	Type	Required	Description
URL	String	Y	Notification callback URL. Cloud Native Build will send notification messages to this address.
Type	String	Y	Select User Notification
Trigger	String	Y	Subscribed event types, multiple selections allowed
Token	String	N	Used for token authorization verification of the callback URL, optional

Event Types

Cloud Native Build supports the following or more event types:

• pull request
  • New comment
  • New assignee
  • New reviewer
  • Status change
  • New review
• issue
  • New comment
  • New assignee
  • Status change
• Repository
  • Archive
  • Delete
  • Transfer
  • Member role change
• Organization
  • Transfer
  • Member role change
• User
  • @user

Notification Message Structure

Notification Header

• Content-Type: "application/json;charset=utf-8"
• `X-CNB-Event": "System Hook", identifies the notification message event
• X-CNB-Token: If an authorization token is configured (see Notification Configuration), this field will be included

Notification Body

{
  "touser": "UserID1|UserID2|UserID3",
  "msgtype": "text",
  "text": {
    "content": "There is a new PR to be processed"
  }
}

Parameter descriptions:

Parameter Name	Type	Required	Description
touser	String	Y	Specifies the members to receive the message, a list of member IDs (multiple recipients separated by |, up to 1000).
msgtype	String	Y	Message type, fixed as: text
content	String	Y	Message content, maximum 2048 bytes

Notification Message Example

Taking pull request new review as an example, when the reviewer approves the PR, the following notification message will be sent:

admin1 approved PR #1

feat: init
https://cnb.share.ralphlauren.cn/test/test-repo/-/pulls/1

Request body content:

{
  "touser": "123",
  "msgtype": "text",
  "text": {
    "content": "admin1 approved PR #1\n\nfeat: init\ncnb.share.ralphlauren.cn/test/test-repo/-/pulls/1"
  }
}
